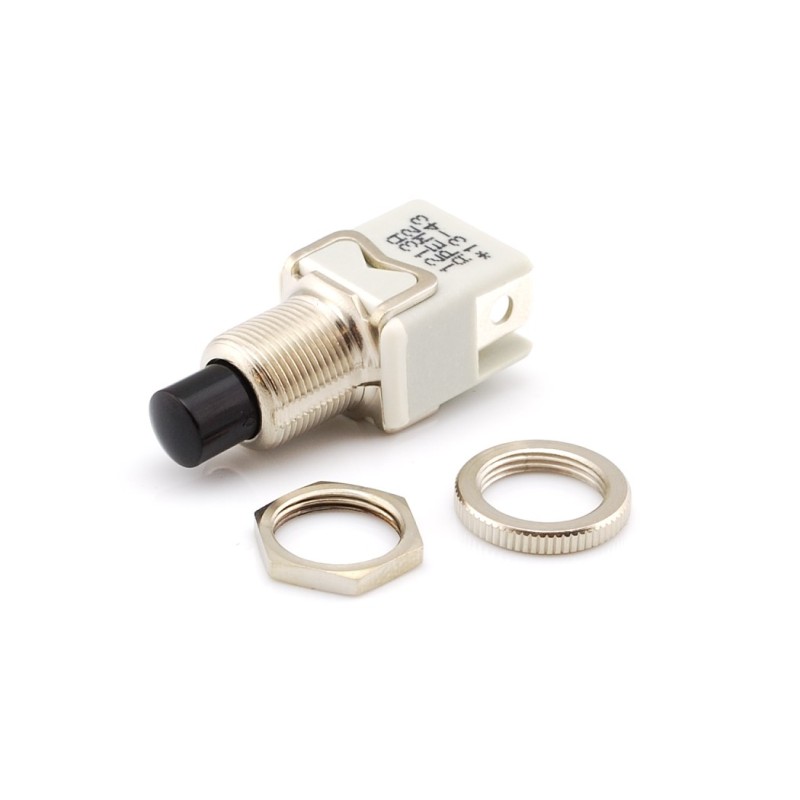

Heavy Duty Push Button Switch 1213A 2 1

Push Button Momentary Switch

Materials:
Case: polyamide
Plunger: polyamide
Bushing: brass, nickel plated
Contacts: copper, silver plated

Electrical Specifications:
Max. current/voltage rating with resistive load: silver plated copper contacts 2A 24VDC - 3A 12VDC
Initial contact resistance: 10M ohm max. at 1A 2VDC
Insulation resistance: 1000M ohm min. at 500VDC
Dielectric strength: 2500 Vrms 50Hz min. between materials
2.500 Vrms 50Hz between terminals and frame
Electrical life at full load: 10.000 cycles

General Specifications:
Torque: 1,50 Nm (1.10 Ft.lb) max. applied to nut
Panel thickness:
5 mm (.196) max.
Total travel: 4,5 (.177) +/- 0,3 (.011)
Operating Temperature: -30 degrees C to + 55 degrees C
