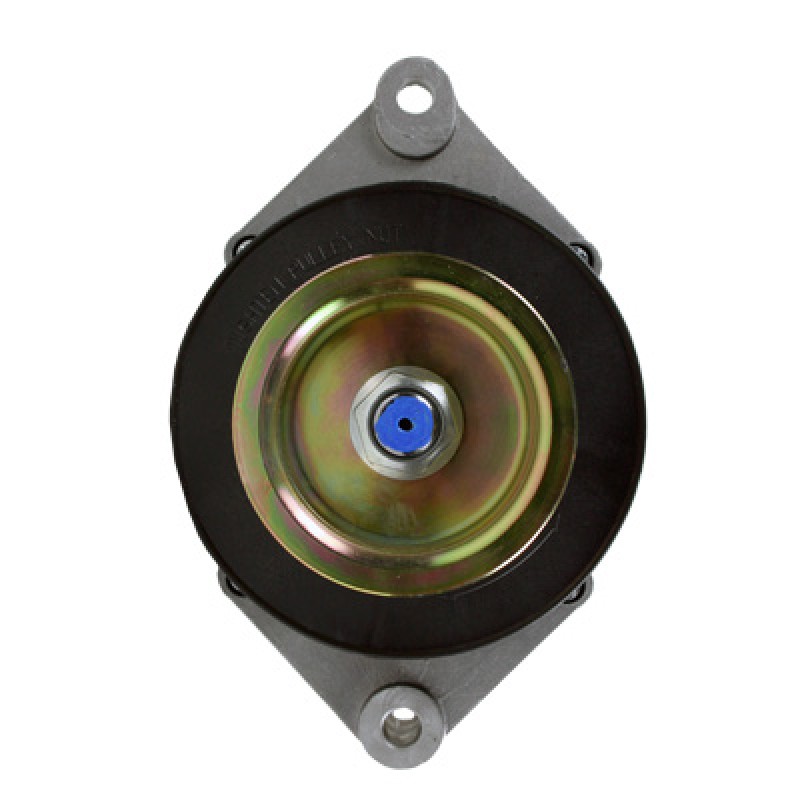

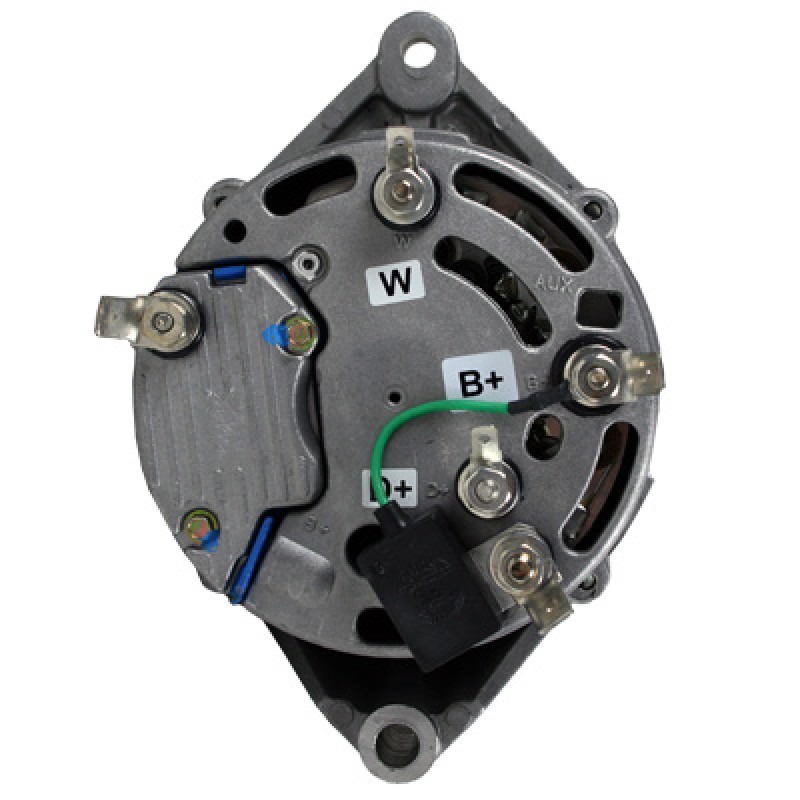

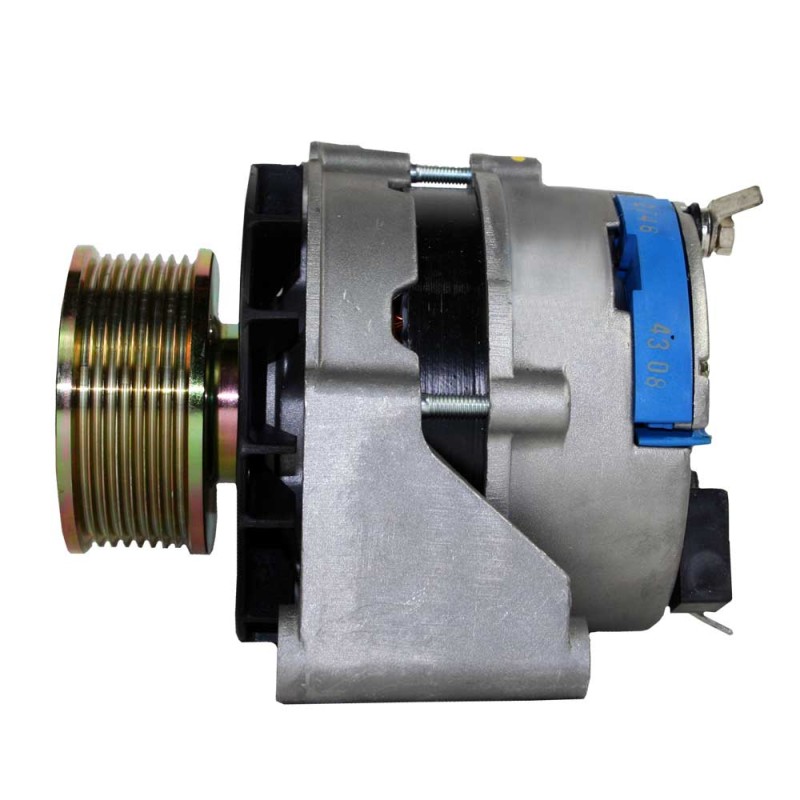

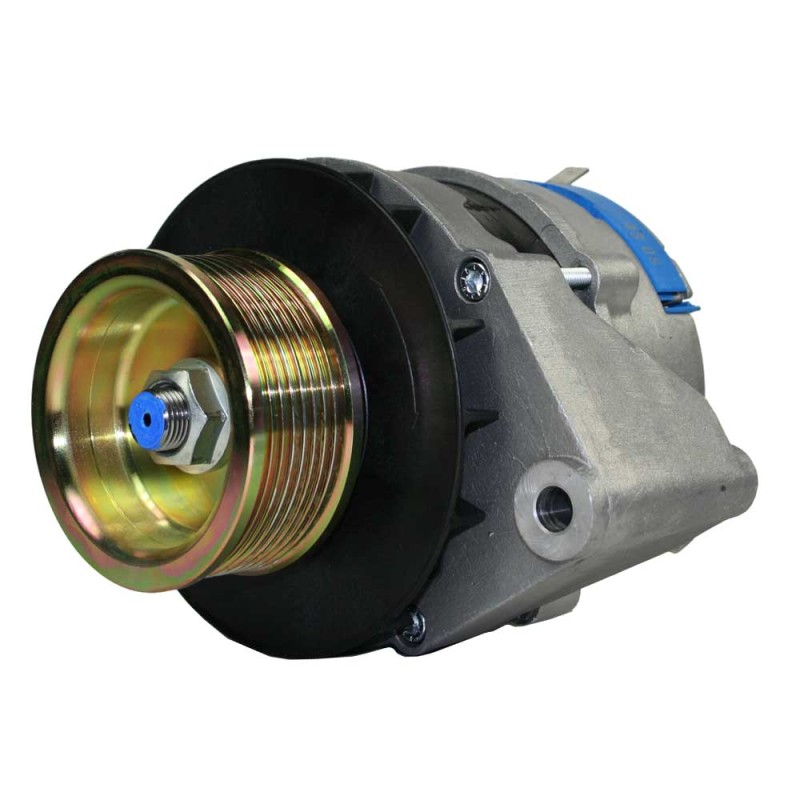

High Output Alternator 24V 55A 66021491

Item number: 66021491

Series number: AS123

System voltage:24

Output:55

Mounting style:SPOOL

Spool length:76mm

Rotation:BI-DIRECTIONAL

Housing coating:RAW

Mounting ear size:9

Mounting holes:11.2

Positive stud:M5/9.5 LUCAR BLADE

Negative stud:M6/9.5 LUCAR BLADE

Rectifier location:INTERNAL

Shaft diameter:19 MM

Pulley included: 8K, 82mm

Special Notes:

Not available 19mm shaft,  groove polyvee pulley

New Field isolation for Petrol Tankers.

Fix circle (mount) 88.9,mm     Fix circle (adjuster) 93.mm

Bracket Angel 07 degrees

CUT IN SPEED: 1680, MAX SPEED: 15000

Prestolite
