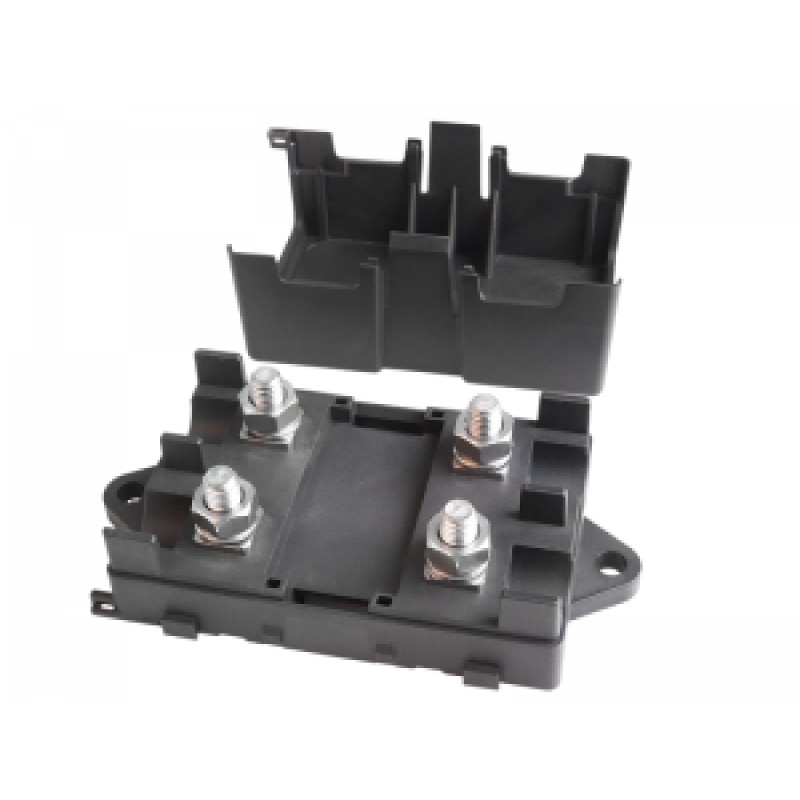

Double fuse holder with protective cover for mega link fuses. The holder is moulded in tough PBT and glass filled nylon.
The fuse and cable terminals are secured using 2 x M8 studs and lock washers and the housing can accommodate copper tube terminals for cable up to 95mm sq.
The cover releases easily via two flexible latches on the sides.
These fuse holders have side stacking features allowing them to be clipped together to form a multi-fuse block, and there are two mounting lugs moulded into the housing for fixing to a flat surface. There are also moulded-in cable tie points so that the cover can be tethered to the body.
Fixings and fuses not included
L 129 x W65.5 x H54 mm
|Voltage Rating (V)
|32V DC Max
