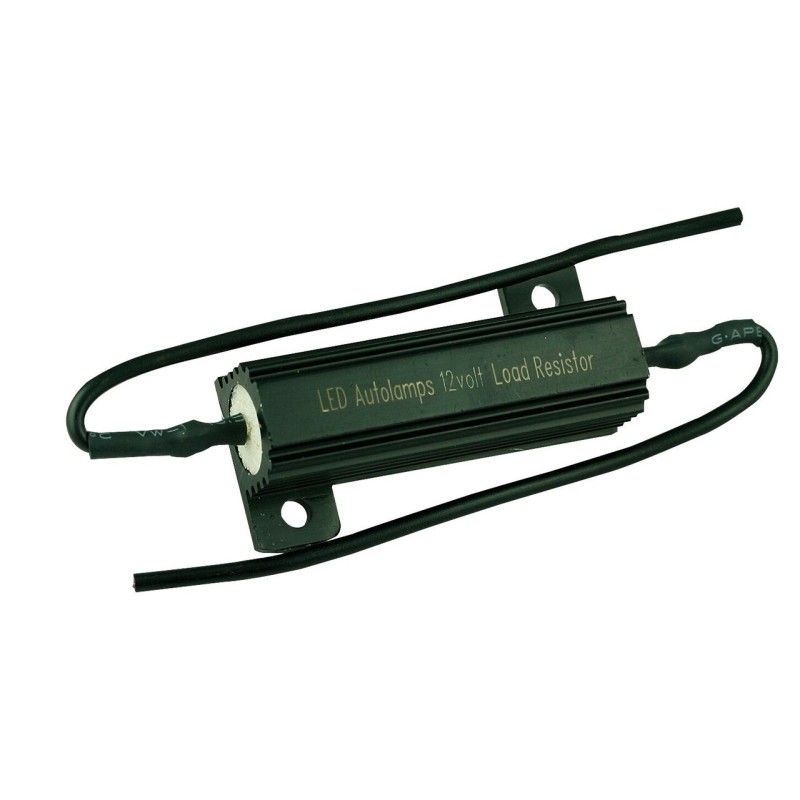

12V Load Resistor LR12

12V load resistor.  50W 6 OHMs.

Overall size 50 x 15 x 15mm

Important Instructions:

Must be mounted on metal surfaces. The resistor can reach up to 170 deg C.  Do not mount the resistor on any surface that could melt from the heat of the resistor, this includes plastics, hoses or painted surfaces.

Correct Fitting:

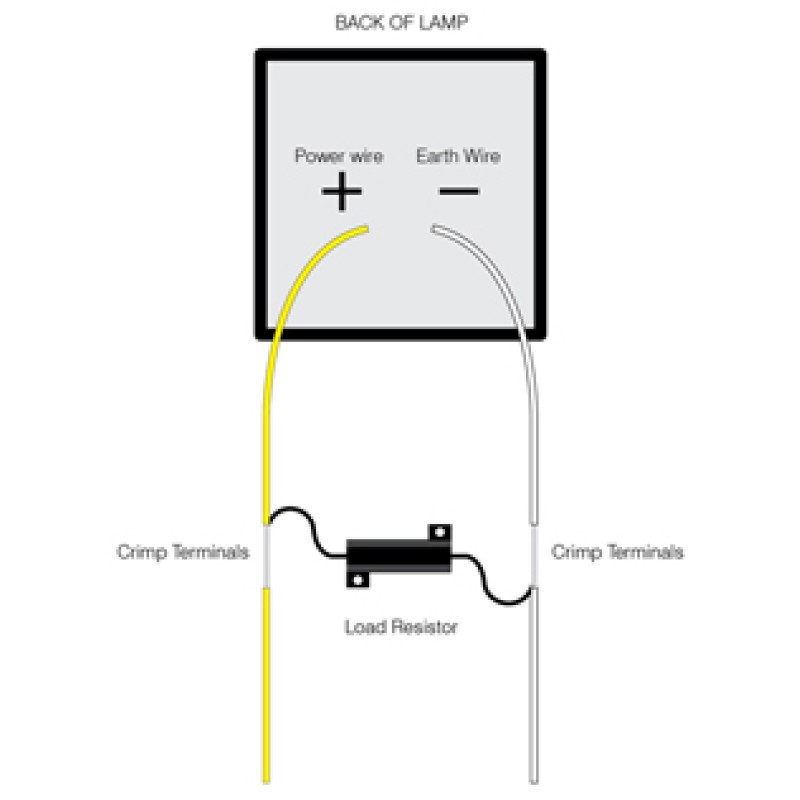

Using the cable terminals supplied ensure that when the wires are connected they provide a completely waterproof connection to ensure safe operation of the vehicle.  Make sure the load resistor is secured firmly by using the scres privded to an appropriate surface.  If in doubt of the correct fitting procedure of this product please contact us 01483 538038

The cable harness assemblies shown here are suitable for use with this product.
