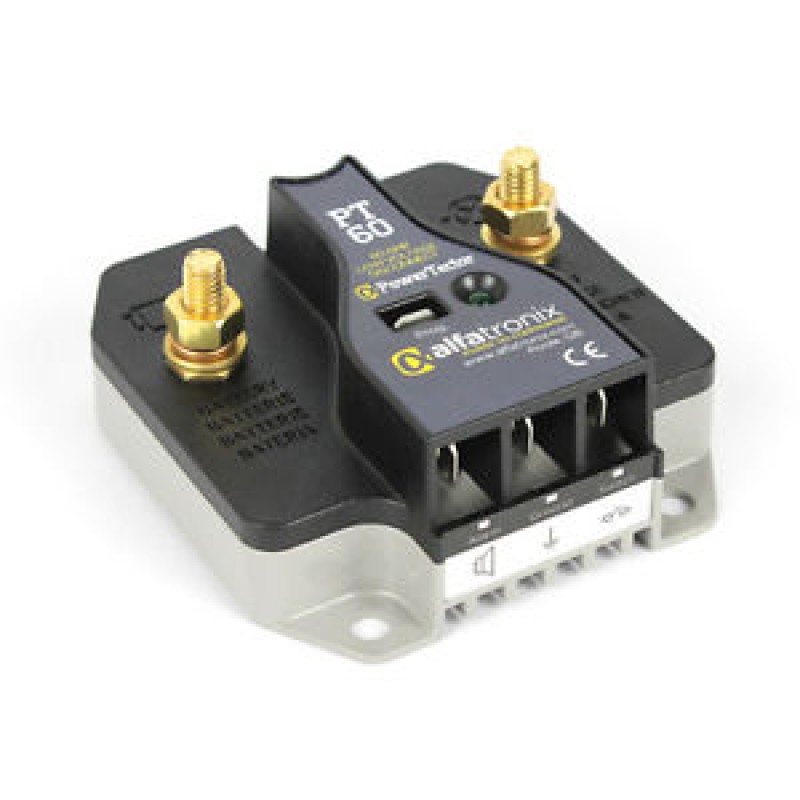

PowerTector Battery Guard PT60

The PowerTector Battery Guard is a solid state device that will monitor the source voltage and disconnect the equipment from the battery if the voltage falls below a pre-determined level, to ensure that there is always sufficient voltage remaining in the battery to start a vehicle engine or ensure power is available for other critical applications.

This unit does not require chassis mounting.

Power 60A continuous

Input Voltage 9Vdc-32Vdc (Automatic Referencing)

Technical Data

Input voltage range 9-32Vdc (Automatic Referencing)

Output voltage Equal to input voltage when operating (maximum of 100mV drop across terminals)

Transient over current rating (% of continuous value)

110% for 10s    200% for 1s     300% for <0.5ms

On over current shut down there is a retry every 30s

Quiescent current when shutdown (when running) PT60 Typ 4mA @13.6V

Isolation >400Vrms between input, output and case

Transient voltage protection Meets ISO7637-2 International standard for 24V vehicles

Electrostatic voltage protection Meets ISO10605, ISO14892, >8kV contact, 15kV discharge

Operating temperature -25ºC to +60ºC to meet this specification table

Storage temperature -25ºC to +100ºC

Casework E coated aluminium, glass filled polycarbonate

Connections M6 ring tongues

6.3mm push-in flat blade connectors for earth, program, switch, override and alarm

Programming lead provided

Output indicator Green LED adjacent to programming terminal (for programming and output indication)

Mounting method  3off pozi screws

Safe area protection:  over current Limited by current sensing circuit.   Over heat Limited by temperature sensing circuit.         Transients Protected by filters and rugged component selection.Catastrophic protection Set by external input fuse (set by application demands) and ground line fuse 1A

Approvals 2004/108/EC The general EMC directive AES Spec 5

Regulation 10.04 The automotive directive

93/68/EEC The CE marking directive

Markings  CE and E marked
