LED Illuminated Marine Fuel Gauge 052526

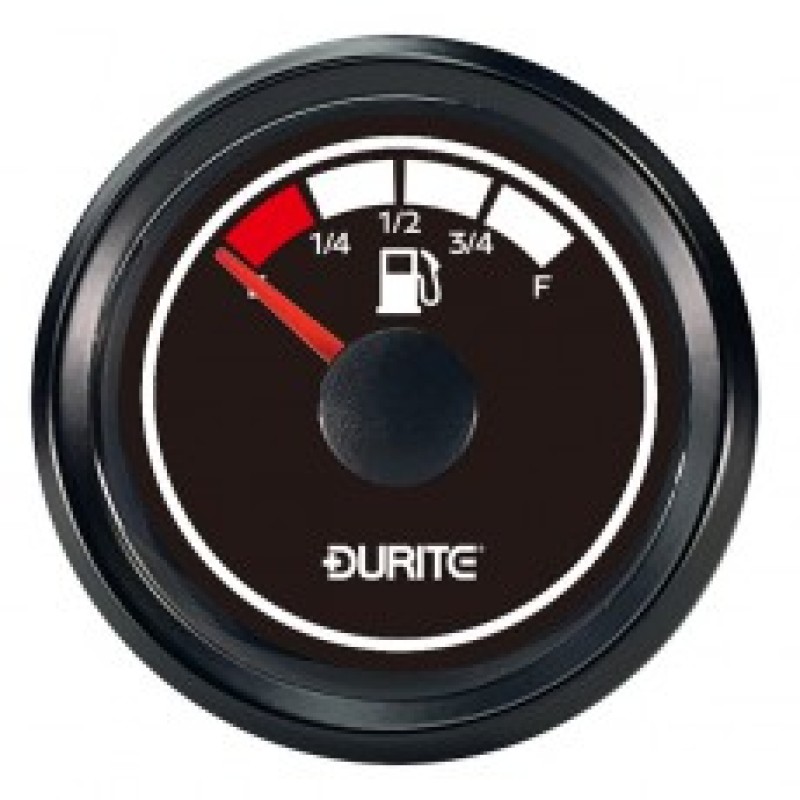

LED Illuminated  12/24 volt fuel level marine gauge, 90 degrees sweep dial.

LED illumination in either white or yellow, plastic cased and with stainless steel bezel. Screw collar type fitting. Fitted with 600mm cable. Supplied without pole tank sender.

Technical Data

Gauge Type Panel mount fuel level marine gauge

Voltage 12/24  DC

Scale 90 deg sweep graduated in tenths

 Illumination Choice of white or yellow

Cable Length 600mm

Panel cut out 52mm dia

Max panel depth 25mm

Protection IP67 (from the front)

Body Material Plastic Beze

Material Stainless steel

Sender type Stainless steel pole tank sensor

Resistance 0-190 Ohm

Cable length 450mm

Tank cut out 40mm dia

Mounting holes 5 x 5.5mm dia on 55mm PCD

Material Stainless Steel
